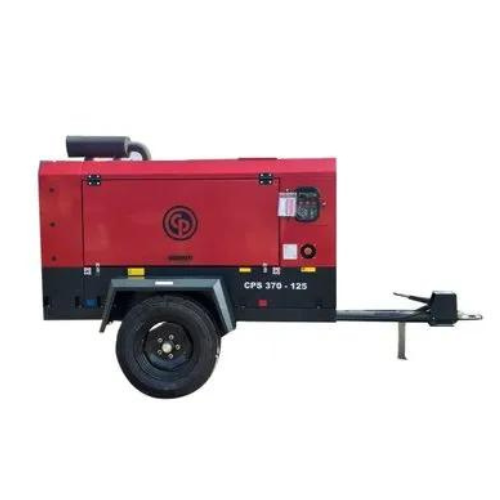

CPS 370/125
- high Pressure Compressors
- Single stage/Two stage oil injected, twin screw element
-
Engine and element are directly coupled to the state-of -the -art water
cooled diesel engine through a flexible coupling - Sturdy canopy ensures all weather operation
- Frame of the compressor is sturdy and can fit any medium size truck
Enquiry Form
Specification
AIR FLOW (cfm) 1
370
WORKING PRESSURE (psig)
125
MAX ENGINE SPEED(rpm)
2400
CAPACITY-FUEL TANK (I)
100
CAPACITY-OIL CAPACITY (I)
22
L * W * H -(mm)
Portable 3305*1680*1983
Skid Mounted 2175*1180*1529
DRY WEIGHT kg.
CPS 300-100-1360
CPS 370-125-1440
CPS 400-100-1440
ENGINE MAKE
Ashok Leyland Hino
ENGINE MODEL
ALW04CT
ENGINE HP
80
